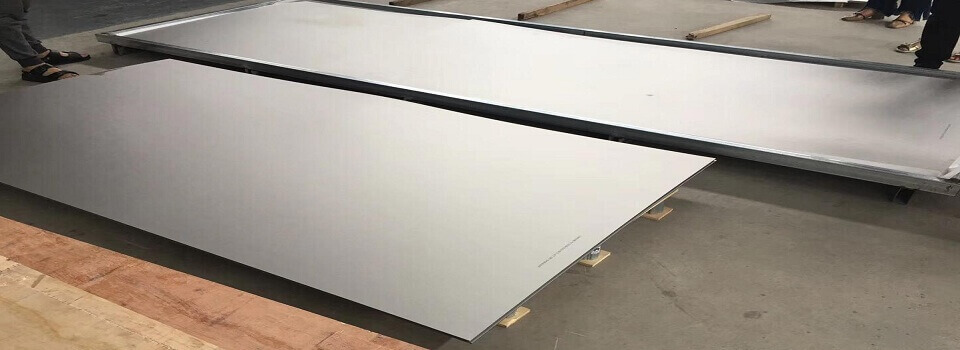

Nimonic Alloy 80 UNS N06080 Strips, Sheet & Plate Manufacturer, Nimonic Alloy 80 Strips, Sheet & Plate Manufacturer In Mumbai, India & Nimonic Alloy 80 Strips, Sheet & Plate Exporter In Mumbai, India
Nimonic 80 is a surrounded, age-solidified mix that is fortified by included substances like titanium, aluminum and carbon. Nimonic 80 Plate is made by high-continue joining together and tossing in air. In the event that consider couple of highlights of Nimonic 80 Sheet the you will discover Nimonic 80 Clad Plate looks like NIMONIC compound 75 plate. Nimonic 80 Shim has limitless use and oxidation prevention.
The yank split and tractable properties are high at 815°C (1500°F). Nimonic 80 Rolling Sheets can be welded utilizing basic systems, utilizing a managing filler metal. Nimonic 80 Coil can be hot worked at temperature degrees of 1050-1200°C (1920-2190°F). These Nimonic Alloy 80 Plates can be hot sorted out at temperatures in the dimension of 982-1176°C (1800-2150°F). Nimonic 80 Rolling Plate ought to be tempered at 1079°C (1975°F) for around 8 hours and air cooled.
Nimonic 80 Plate or Nimonic 80a Plate is a nickel-chromium compound like NIMONIC mix 75 in any case made precipitation hardenable by augmentations of aluminum and titanium. NIMONIC composite 80 Plate is a shaped, age-hardenable nickel-chromium amalgam, reinforced by increments of titanium, aluminum and carbon, made for relationship at temperatures up to 815°C (1500°F). NIMONIC 80 Plate is passed on by high-keep slackening up and hurling in air for structures to be expelled.
NIMONIC 80 Sheet is straightforwardly after a short time utilized for gas turbine parts (sharp edges, rings and circles), stuns, atomic evaporator tube strengthens, and so forth in inside turn over motors. The NIMONIC 80 Plates have remarkable deteriorating and oxidation detainment and high adaptable and creep-break properties at temperatures to 1500°F (815°C).
Nimonic 80 Sheet, Plate Specifications
| Specifications |
ASTM B463 / ASME SB463 |
| Standard |
ASTM, ASME and API |
| Specialize |
Shim Sheet, Designer Sheet, B. Q. Profile. |
| Size |
0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Form |
Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Designer Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish |
Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness |
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade |
Nimonic 80 (UNS N07080 ) |
| Nimonic 80 Material |
UNS N07080, W.Nr. 2.4631 and 2.4952 |
Nimonic 80 Sheet Plate Chemical Compositions
| Grade |
Al |
B |
C |
Cr |
Co |
Cu |
Fe |
Mn |
Ni |
P |
Si |
S |
| Nimonic 80 |
1 – 1.8 |
0.008 max |
0.1 max |
18 – 21 |
0.2 max |
0.2 max |
3 max |
1 max |
Balance |
0.045 max |
1 max |
0.015 max |
Nimonic 80 Plates Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
| Nimonic 80 |
2.4952 |
N07080 |
Nimonic 80 Sheet Plate Physical Properties
| Grade |
Density (lb / cu. in.) |
Specific Gravity |
Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) |
Electrical Resistivity (microhm-cm (at 68 Deg F) |
Melting Point (Deg F) |
Thermal Conductivity |
Mean Coeff Thermal Expansion |
Magnetic Permeability |
Modulus of Elasticity Tension |
| Nimonic 80 |
0.295 |
8.19 |
0.11 |
746 |
2450 |
77 |
7 |
1 |
30 |
Nimonic 80 Sheet Plate Mechanical Properties
Grade
|
Condition |
Ultimate Tensile Strength MPA |
Yield Strength MPA |
Elongation on 4D (min) |
Hardness min |
| Nimonic 80 |
Solution Annealed & Precipatation Treated (aged) |
994 |
616 |
20 |
300 HV |
Nimonic 80 Sheet Plate Applications
- Fertilizers Industry
- Aerospace Industry
- Nuclear Power Plant Industry
- Chemical Industry
- Oil & Gas Industry
- Refineries Industry
- Petrochemical Industry
- Paper Industry
