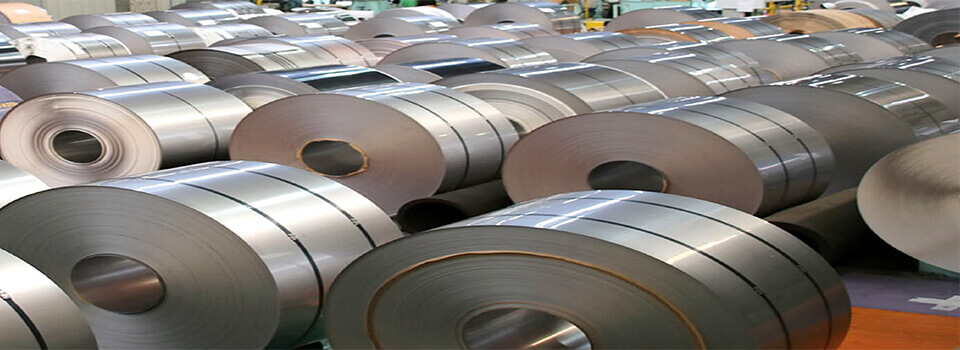

Stainless Steel 904L Coils are proposed for time of machine parts. These are adequately formable in different gotten structures. These circles offer surprising resistivity to detaching and scratched spot, which make it perfect for ruinous conditions. These repudiate substance segregating so they can be used in various compound affiliations.
It has tendency to hold up under high temperatures which makes it certified for high temperature working conditions. Using these turns, affiliation time of vocations will augment. These are most secure for use in striking condition and it can hold up under most fundamental weight and temperatures thusly, its prosperity features decreases any chance of disturbances. These are absolutely demandable in marine condition customer stunning affirmations by and large as advancement application.
ASTM A240, ASME SA 240 is two or three degrees of these circles. These are open in standard sizes shifts from length 1000 mm – 6000 mm, thickness 4.0 mm – 100 mm made by clients rules. Unstable, hard, half hard, quarter hard, spring hard are hardened customers can purchase. It is attested with plastic for disparaging any standard damages.
Coils are made with the help of endeavored foul materials for expanding high measure. Increased used ground machines for gathering these circles with the objective that it increment most verifiable surface finishing and dimensional precision. These are open in most reasonable expenses.
Stainless Steel 904L Coils gives whole game plan relationship to dealing with applications. All of passed on turns experience amazing quality test for debilitating left circles for quality mentioning. These are squashed as packs for easy to passing on and avowing. Use these circles for reestablishing your various applications.
Specifications | : | ASTM B625 / ASME SB625 |
Thickness | : | 4mm-100mm |
Width |
: | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Designer Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Element | SS 904L |
C | 0.020 max |
Mn | 2 max |
Si | 1 max |
P | 0.040 max |
S | 0.030 max |
Cr | 19 – 23 |
Ni | 23 – 28 |
Mo | 4 – 5 |
Cu | 1 – 2 |
Element | SS 904L |
Density | 7.95 g/cm3 |
Melting Point | 1350 °C (2460 °F) |
Tensile Strength | Psi – 71000 , MPa – 490 |
Yield Strength (0.2%Offset) | Psi – 32000 , MPa – 220 |
Elongation | 35 % |
