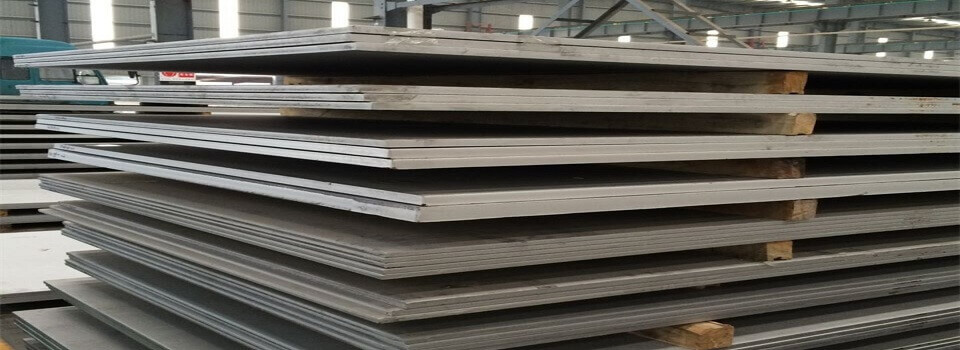

Stainless Steel 409 SHEETS/PLATES are the plates which are conveyed using the best thought of unpleasant material. The use of such foul material makes the exact opposite thing best in all terms. Fundamentally, in this evaluation of steel, you will the utilization of the titanium, chromium that sensible out the property well in it. Padmavati Steel & Engg.Co. one of the remarkable makers shows to all of you the bits of learning concerning their thing to the clients since they need to get their client trust for long. They make this evaluation plate and sheets which are in cooperated with the best thought of the material.
It has a crumbling block property that shields the steel plates from getting rust speedier when it collaborates with the wet condition.It has first class; it is even fantastic in yield and adaptability that makes it organized to be utilized in the extensive mechanical things.It has high mechanical properties that help the thing and application well for long without getting injured not long after establishment.
It even comes it different satisfaction structure one is the FINISH-2B/HR and it open it specific quality. Coterminous this, there are substantially more central purposes of this thing which you get when you went into the online stage. The affiliation shows to all of you the bits of information concerning the thing before they take your requesting.
Cemented Steel 409 Sheets/Plates standard focal points come in various range as shown by the client's decisions. Along these lines they can without a great deal of a stretch satisfy their essential applications needs. So in the event that you are filtering for best associations, by then interface with us.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness :0.01 mm to 250 mmThk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | EN |
SS 409 | 1.4512 | S40900 | SUH 409 | 409S19 | X6CrTi12 |
Element | SS 409 |
C | 0.08 max |
Mn | 1 max |
Si | 1 max |
P | 0.045 max |
S | 0.045 max |
Cr | 10.5 – 11.75 |
Ni | 0.5 max |
Ti | 6x C – 0.75 |
Element | SS 409 |
Density | 7.8 g/cm3 |
Tensile Strength | MPa – 380 |
Yield Strength (0.2%Offset) | MPa – 170 |
Elongation | 20 % |
Hardness | Rockwell B (HR B)- 88 / Brinell (HB)- 0.5t |
